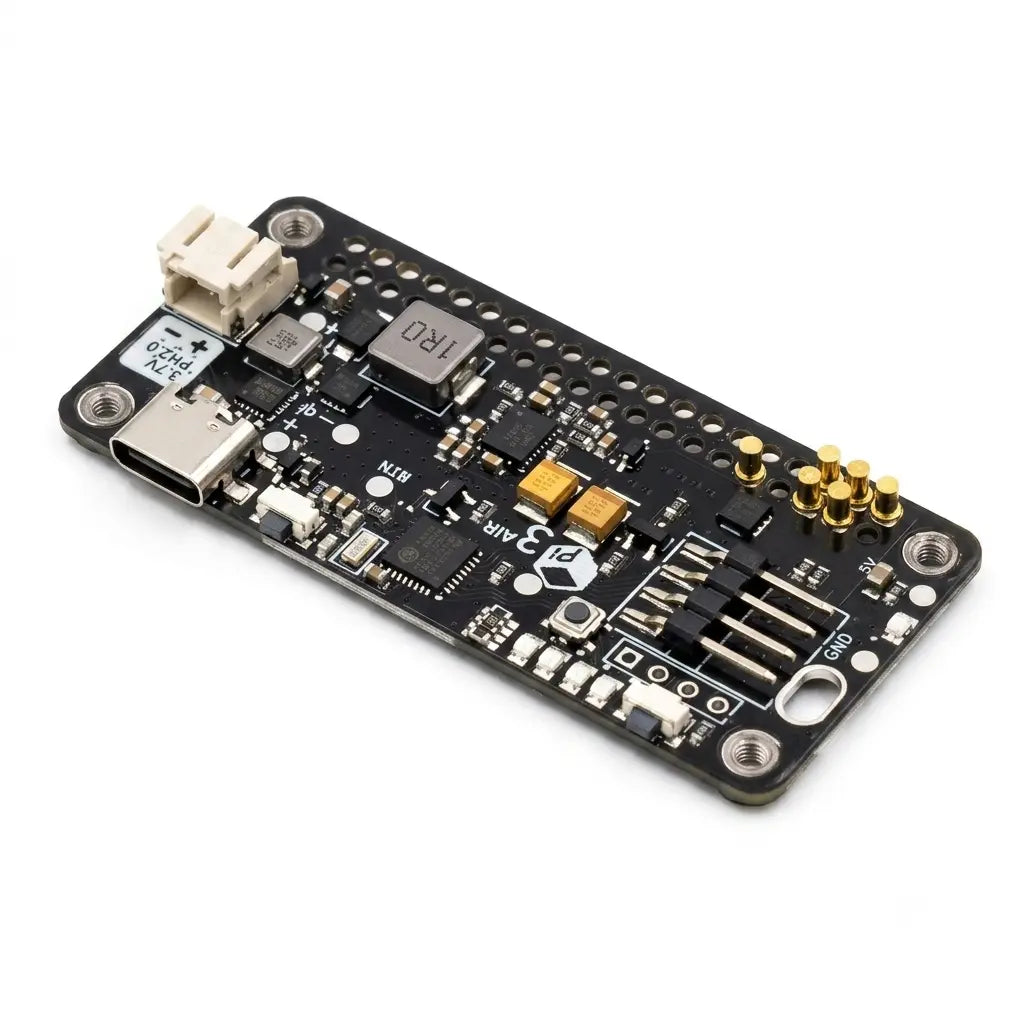

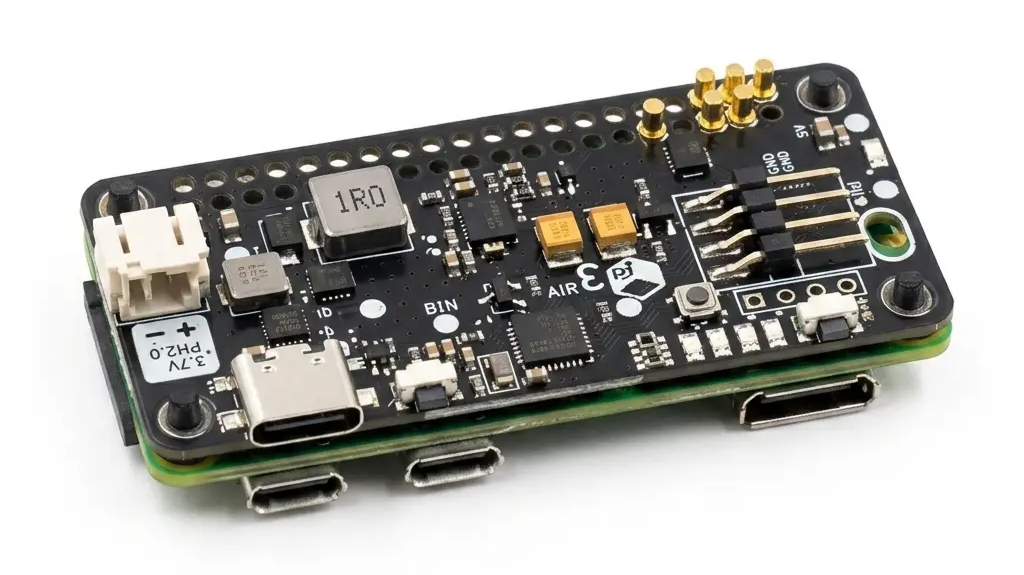

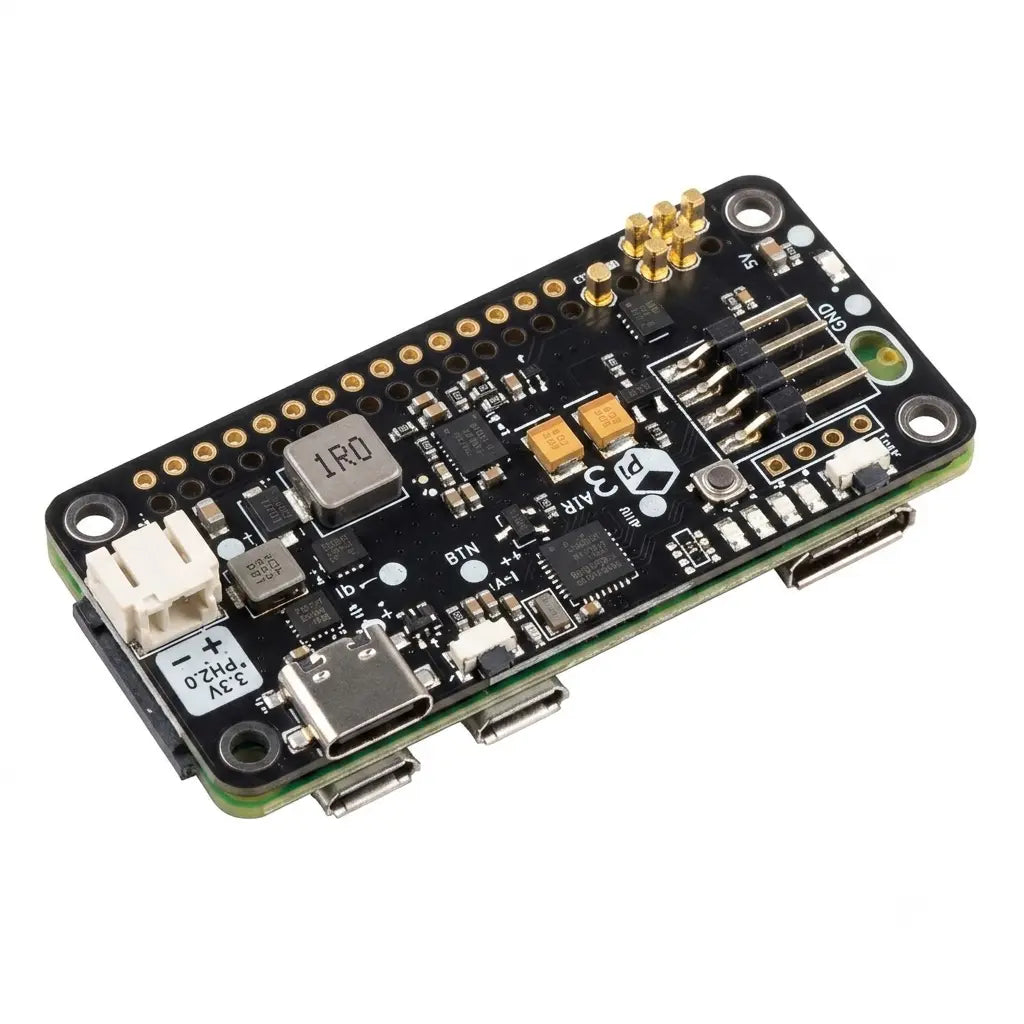

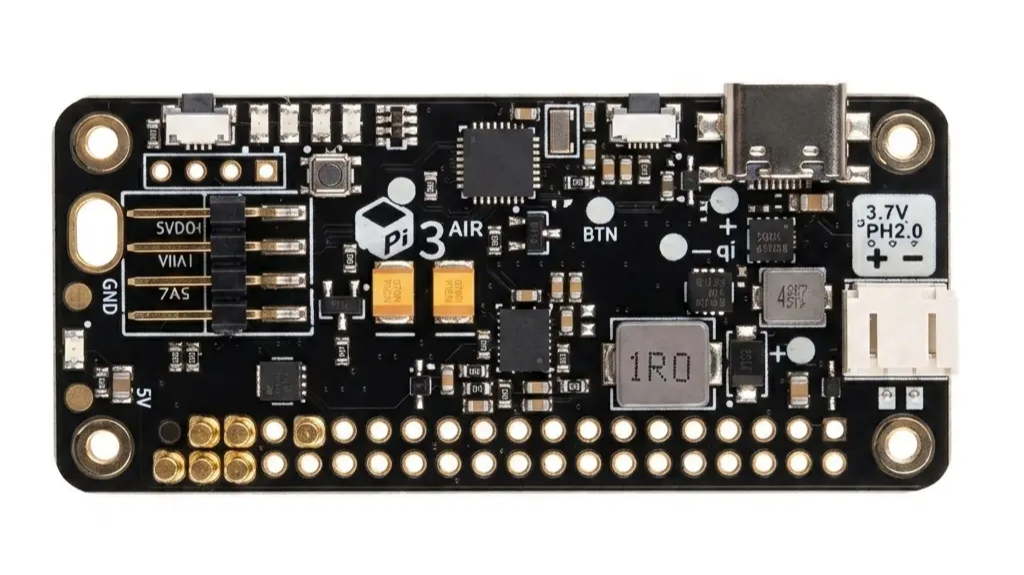

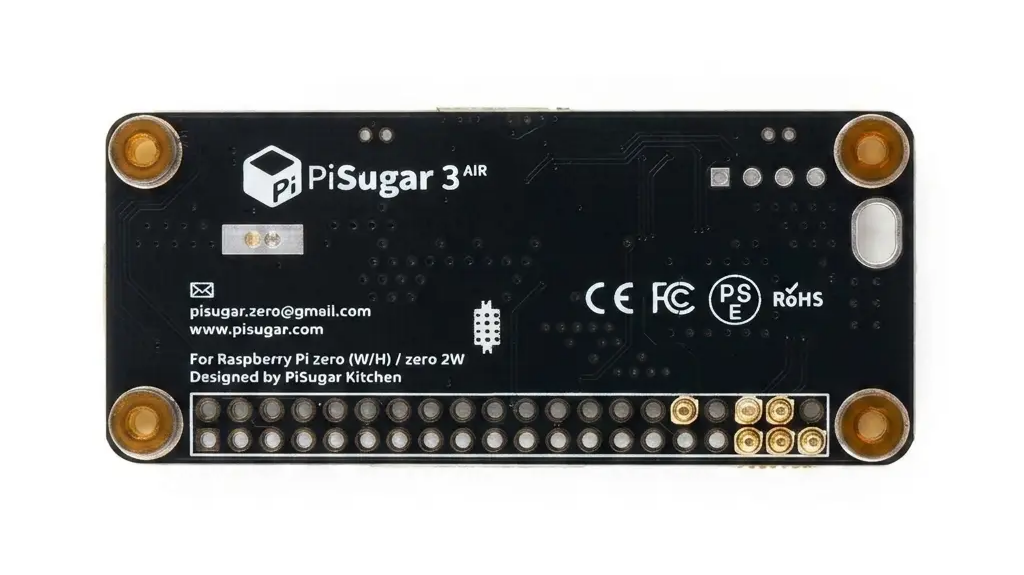

PiSugar 3 Air - Modular UPS Board for Raspberry Pi Zero(Battery Not Included)

Raspberry Pi Zero UPS - Batteryless Version

PiSugar 3 Air is the high-flexibility edition of the PiSugar 3 series, specifically designed for Raspberry Pi Zero / Zero W / Zero 2W.

Instead of a built-in battery, PiSugar 3 Air is designed as a standalone UPS power management board featuring a standard PH2.0 connector. This gives you the ultimate flexibility to pair it with any 3.7V Li-ion or Li-Po battery that perfectly fits your project's capacity and space requirements. While offering a more adaptable hardware layout, it retains all the advanced power management and RTC (Real-Time Clock) capabilities of the PiSugar 3 platform.

Features

• External Battery Support

         PiSugar 3 Air comes without a pre-installed battery, featuring a standard PH2.0 connector instead. This allows you to select and connect your own 3.7V Li-ion/Li-Po battery based on your specific requirements.

• Full functions UPS

• OTA firmware upgrade

• TypeC/micro USB dual charging interface

• Designed for Raspberry Pi Zero/Zero2 (WH)

• Back contact, easy to install, does not occupy GPIO

• Customizable I2C address

• Custom button

• Soft shutdown (hardware notification software shutdown)


• Anti-MistakenTouch Switch

  Effectively avoid shutdown caused by accidental touch

• WebUI & APP

         Mange PiSugar on your PC and mobile

• Software watchdog

         This function can restarts the Raspberry Pi system when the Raspberry Pi system crashes.

• On-boardRTC


         RTC has a write protection function in order toprevent data fluctuations caused by mis-operation or system instability.

• Hardware battery protection

         PiSugar3 provides hardware charging protection function, which effectively improves battery cycle life.

Battery Requirements

         Please note that this product does NOT include a lithium battery. You will need to provide your own battery meeting the following specifications:

• Battery Type: 3.7V Nominal (4.2V Fully Charged) Li-ion or Li-Po battery.
• Connector: Standard PH2.0 plug.
• Capacity: 1200mAh or higher is recommended for stable performance.

⚠️ WARNING: Always verify that the +/- polarity of your battery plug strictly matches the markings on the board before plugging it in. Reverse polarity will damage the device.

Specifications

• Input: 5V - 3A Max
• Output: 5V - 3A Max (Limited by external battery capability)
• I2C Address: 0x57 (Battery) / 0x68 (RTC)
• PCB Size: 65mm X 56mm

Package Contains

• 1 x PiSugar 3 Air board
• 4 x Screws

Support Pi Models

• Raspberry Pi zero (WH)
• Raspberry Pi zero 2 (WH)
