Whisplay HAT for Raspberry Pi Zero W/2W – Audio + Display Expansion Board
Whisplay HAT for Raspberry Pi Zero W/2W – Audio + Display Expansion Board
Regular price
$35.99 USD
Regular price
Sale price
$35.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Talk, See, Create — All on Your Pi.
Bring sound and visual expression to your Raspberry Pi and unleash unlimited creativity!

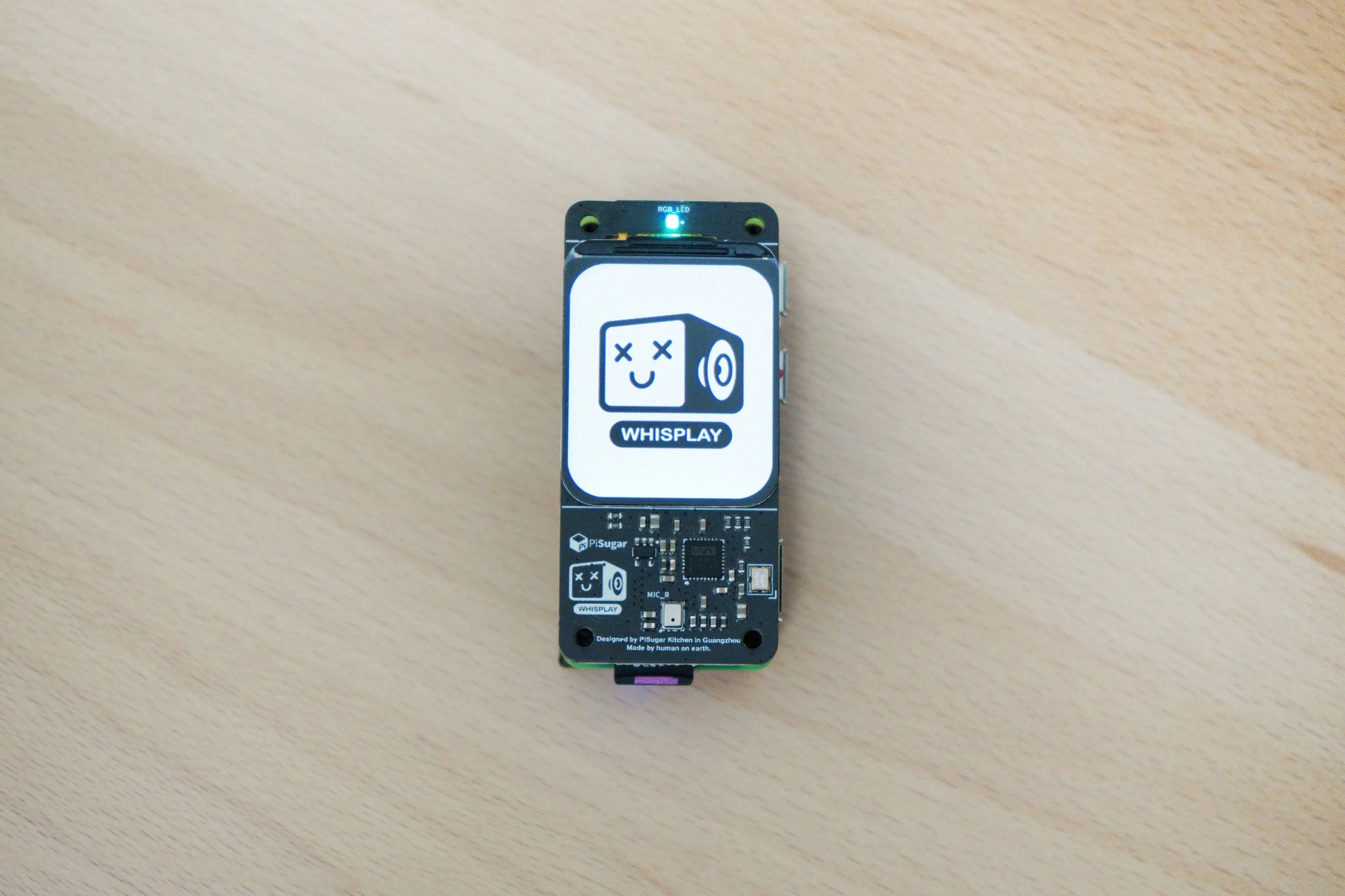

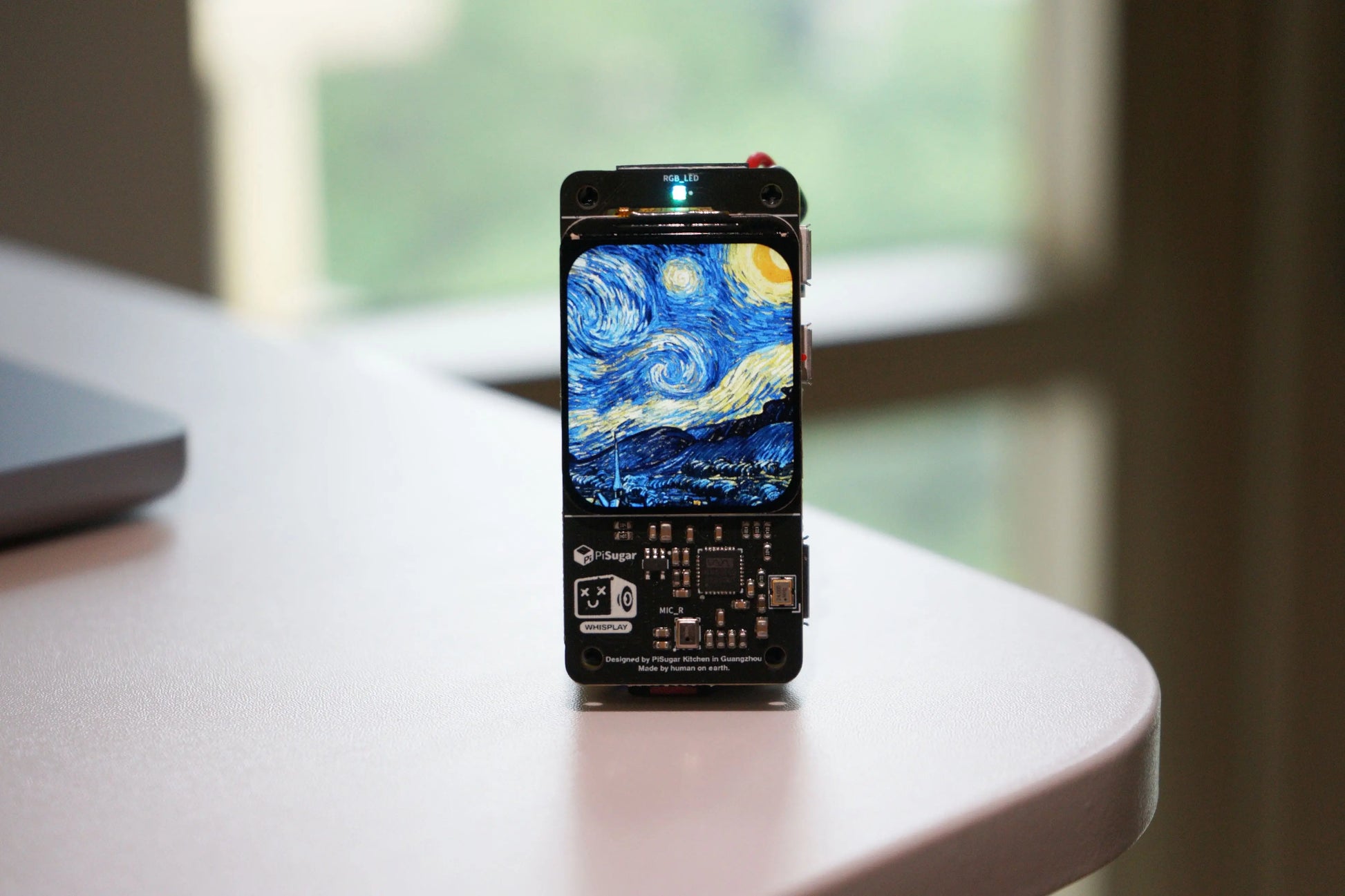

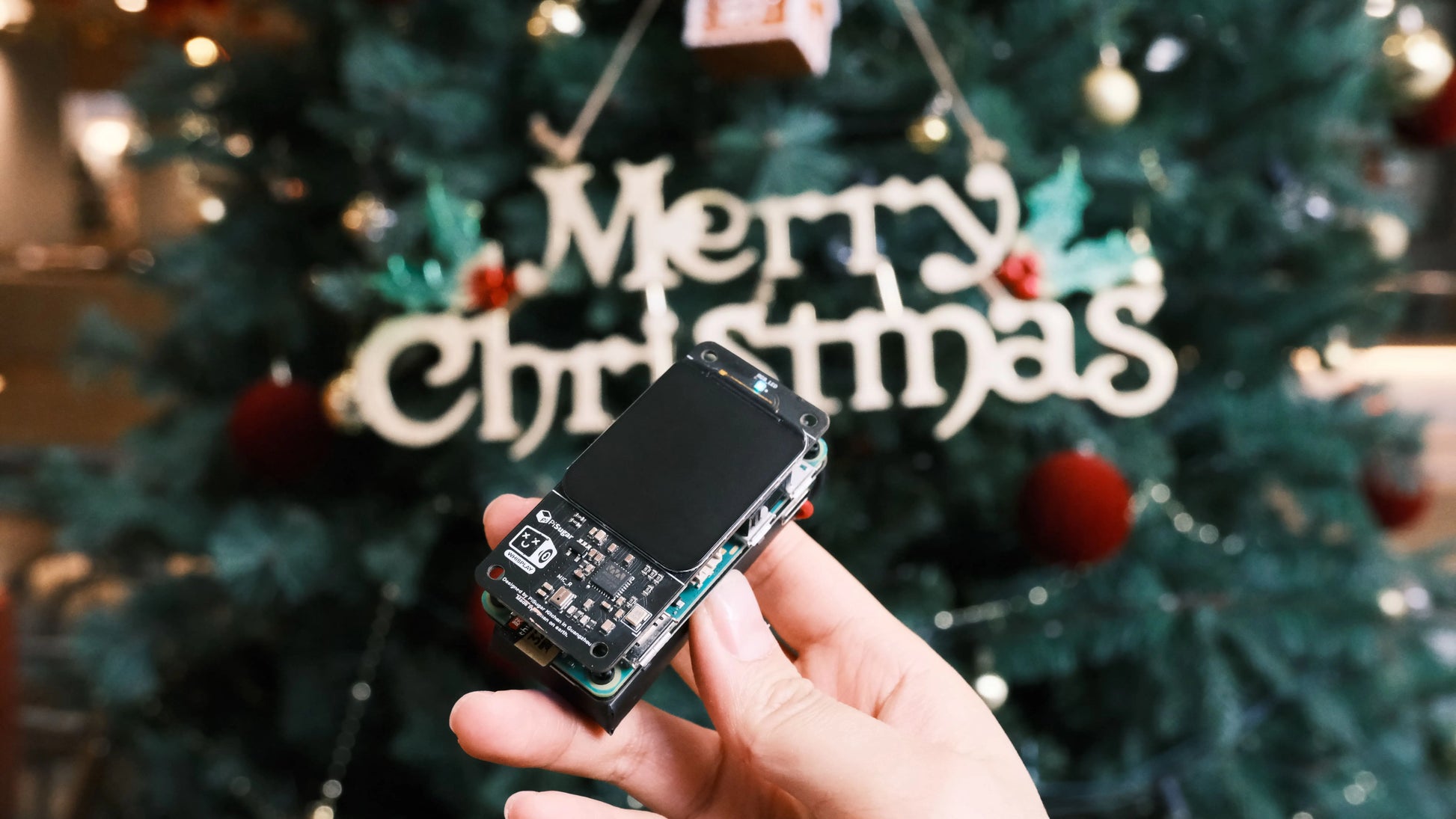

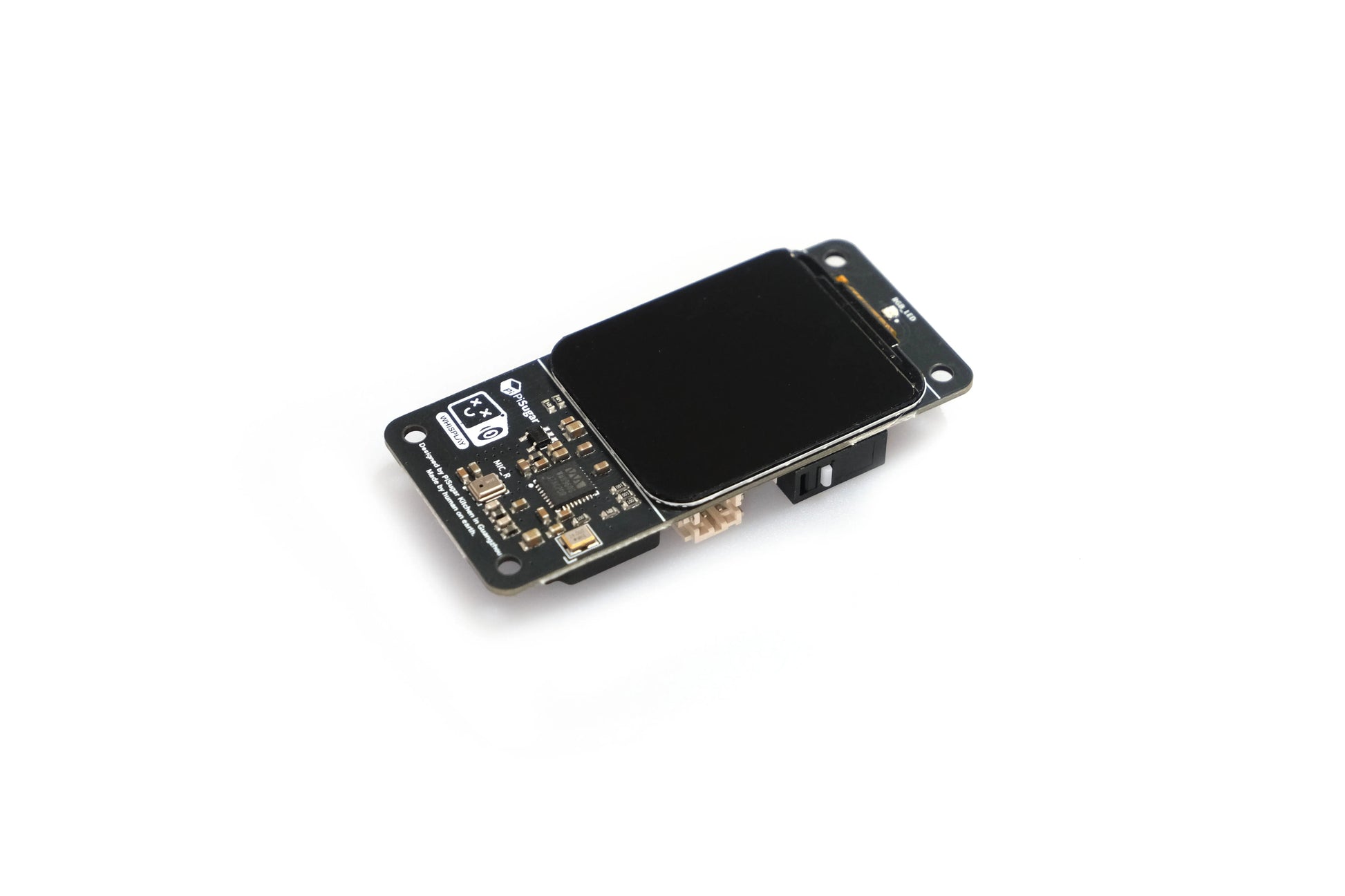

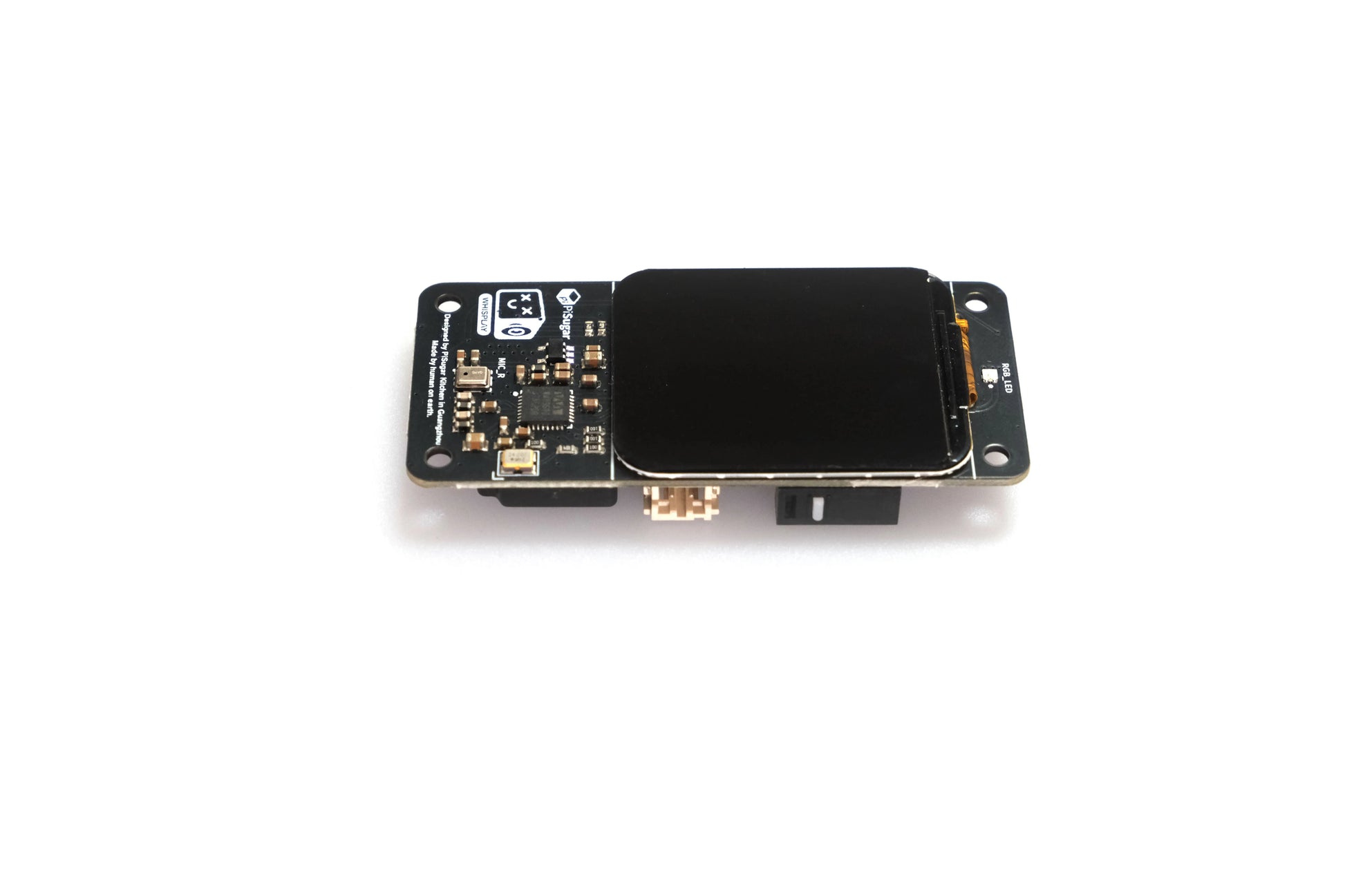

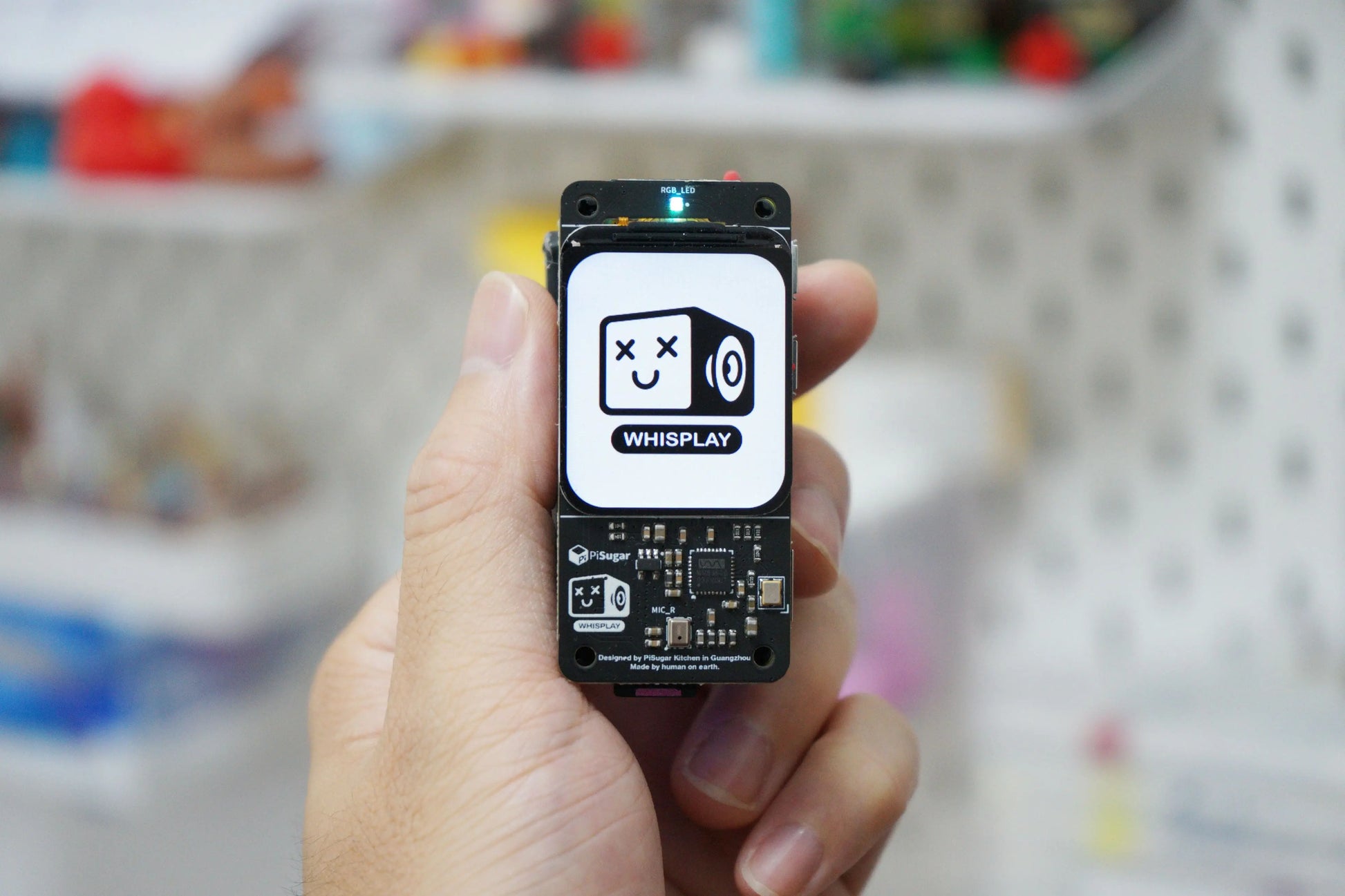

Whisplay HAT is a versatile expansion board integrating high-fidelity audio (WM8960 codec), 1.96-inch color LCD screen, RGB indicator lights, and programmable buttons. Perfect for voice assistants, smart speakers, or creative display terminals.
Compatible with Raspberry Pi Zero / Zero 2 W, it comes with full drivers and development examples to start creating right away!
More Details please refer to Whisplay HAT Docs
Key Features
- Same Dimension as RPI zero: Perfect match with Raspberry Pi zero (2w), perfect fit for handhold device.
- High-performance audio: WM8960 chip, dual microphones, onboard speaker, supports external speakers.
- HD color display: 1.69-inch LCD, 240×280 resolution, SPI interface, clear UI and status display.
- Colorful RGB LEDs: for status indication or decorative effects.
- Mouse Click Button: customize actions, trigger programs, or simulate mouse clicks.
- Creative interaction: compatible with Python, supports AI chatbot and other creative projects.
Whisplay AI Chatbot Project Demo
Technical Specifications
| Specification | Details |
|---|---|
| Display | 1.69-inch LCD, 240×280 resolution, SPI interface, ST7789P3 driver |
| Audio | WM8960 chip, dual microphones, speaker, PH2.0 expansion interface |
| RGB LED | Full color display |
| Mouse Click Button | Programmable functions |
| Interface | 40PIN GPIO, compatible with Raspberry Pi |
| Compatibility | Raspberry Pi Zero / Zero 2 W |
Dimension
65mm x 30mm, same size as a Raspberry Pi zero (2w)
Installation & Quick Start
- Insert Whisplay HAT into Raspberry Pi Zero (2) W GPIO pins, ensuring full contact. (align the button side to the Pi's usb port side)
The Whisplay screen is made of glass and is therefore very fragile. Be careful not to drop it or press on it too hard, as it may crack. When installing it onto the Pi, hold the edges of the circuit board rather than pressing on the top of the screen.
- Remove screen protective film, insert TF card, and power on Raspberry Pi.
- Install drivers (LCD, audio, buttons, LEDs) and run test tools. Whisplay Driver
- Refer to Whisplay AI Chatbot examples for rapid creative application.
Product Contents
- Whisplay HAT board
- User manual
Safety & Compliance
- Do not disassemble or modify the Whisplay HAT
- Avoid short circuits, fire, or high temperature exposure
- Avoid water immersion and store in dry conditions
- Keep packaging materials away from infants to prevent choking
- Complies with FCC Part 15 regulations
- Meets EU/UK safety and compliance standards
